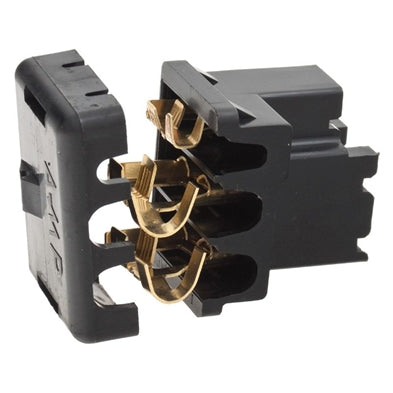

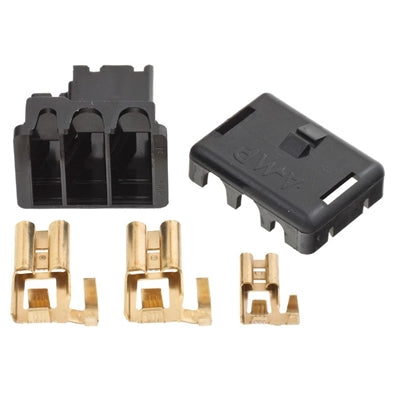

Generator stik

Varenummer: GEU250

På lager
65,00 DKK
65,00 DKK
Gratis fragt ved køb for 1000 DKK til Danmark & 1500 DKK til Norge og Sverige –

Beskrivelse


Intruktion for konvertering: /images/editor//GEU250_instructions.pdf

Alternator Terminal Conversion

Many cars with internally regulated alternators are wired for 5 electrical terminals. The '5 terminal' alternator design is obsolete and is now replaced by a '3 terminal' type. The following wiring instructions, provided by Lucas, outline the conversion procedure from the '5 terminal' to '3 terminal' type.
  • Disconnect battery.
  • Cut off wiring terminal plugs from alternator wiring.
  • Remove and discard link wire (see illustration above).
  • Remove wiring harness tape approximately 1 inch.
  • Slide small insulator over remaining IND wire (brown/yellow), and solder to the small terminal.
  • Slide large insulator over positive lead wire (brown/white), and solder to the large terminal.
  • Separately tape back onto harness, the brown and black wires not used as they are no longer required.
  • Connect the small brown/yellow IND wire to the small terminal on the alternator.
  • Connect the large brown/white positive lead to either of the two large terminals on the alternator.
  • Re-Connect the battery.
Higher output alternators may be substituted for 15 or 16ACR originals without any other alterations being necessary.
